Range Rover P38 Calibration blocks

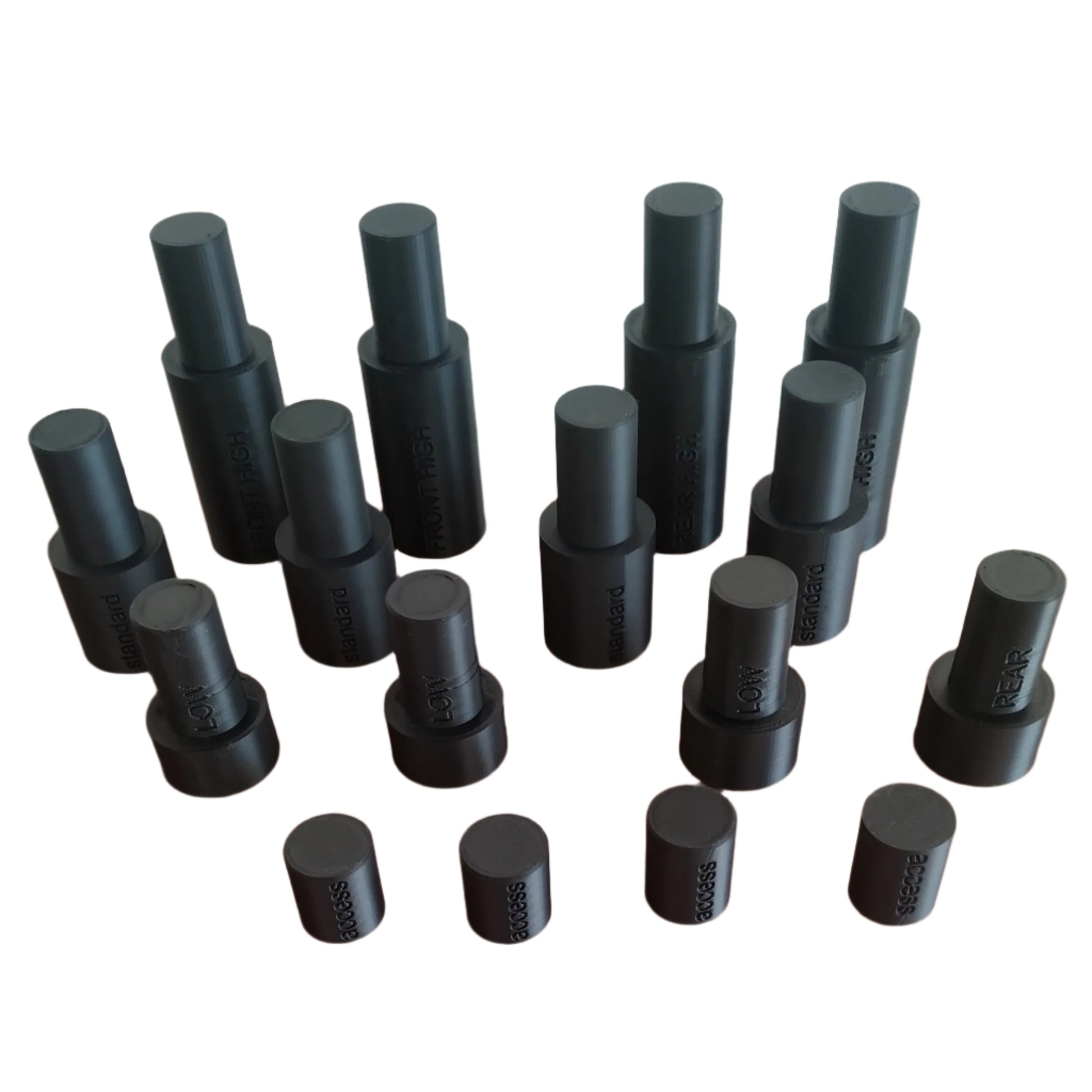

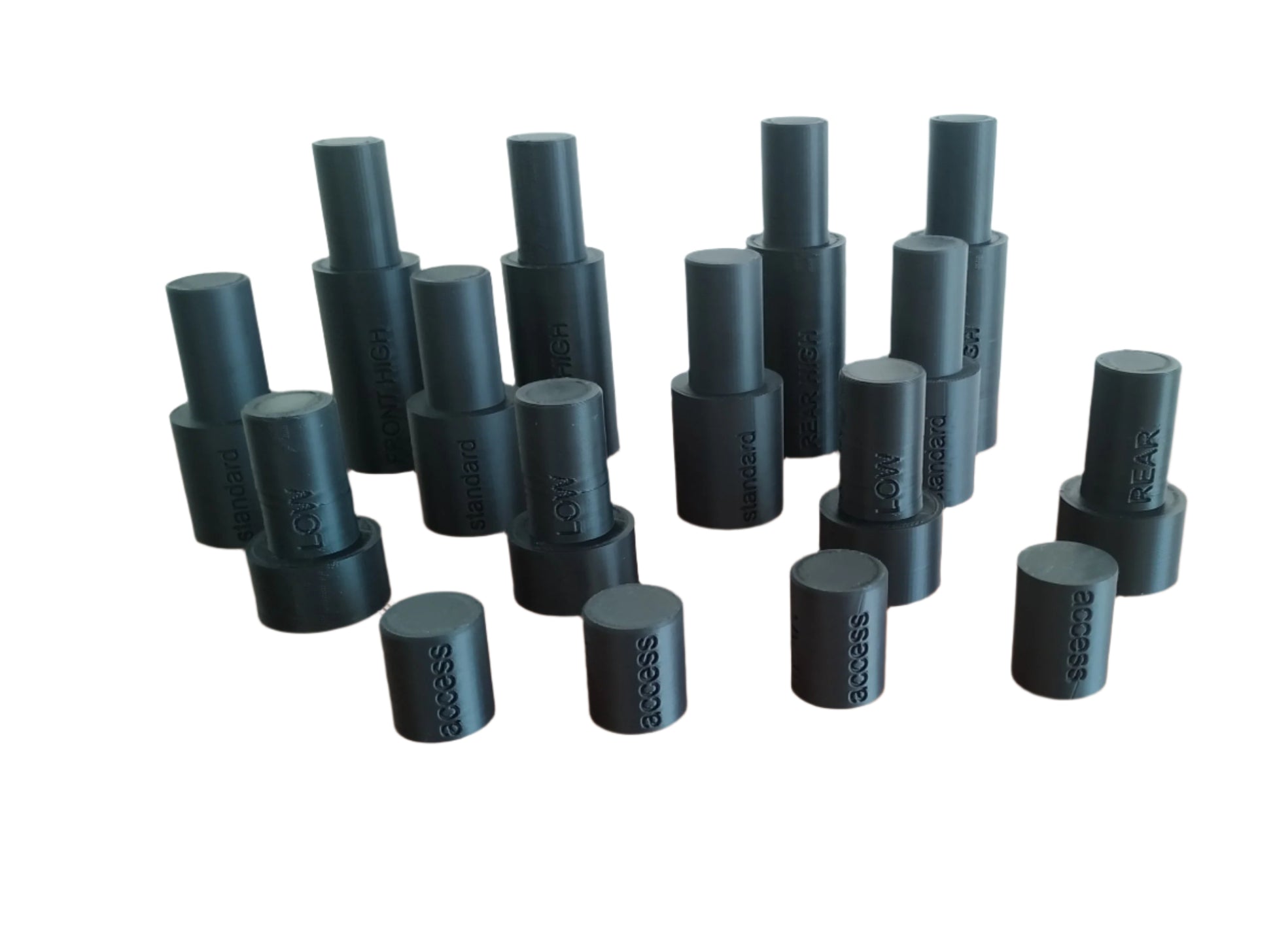

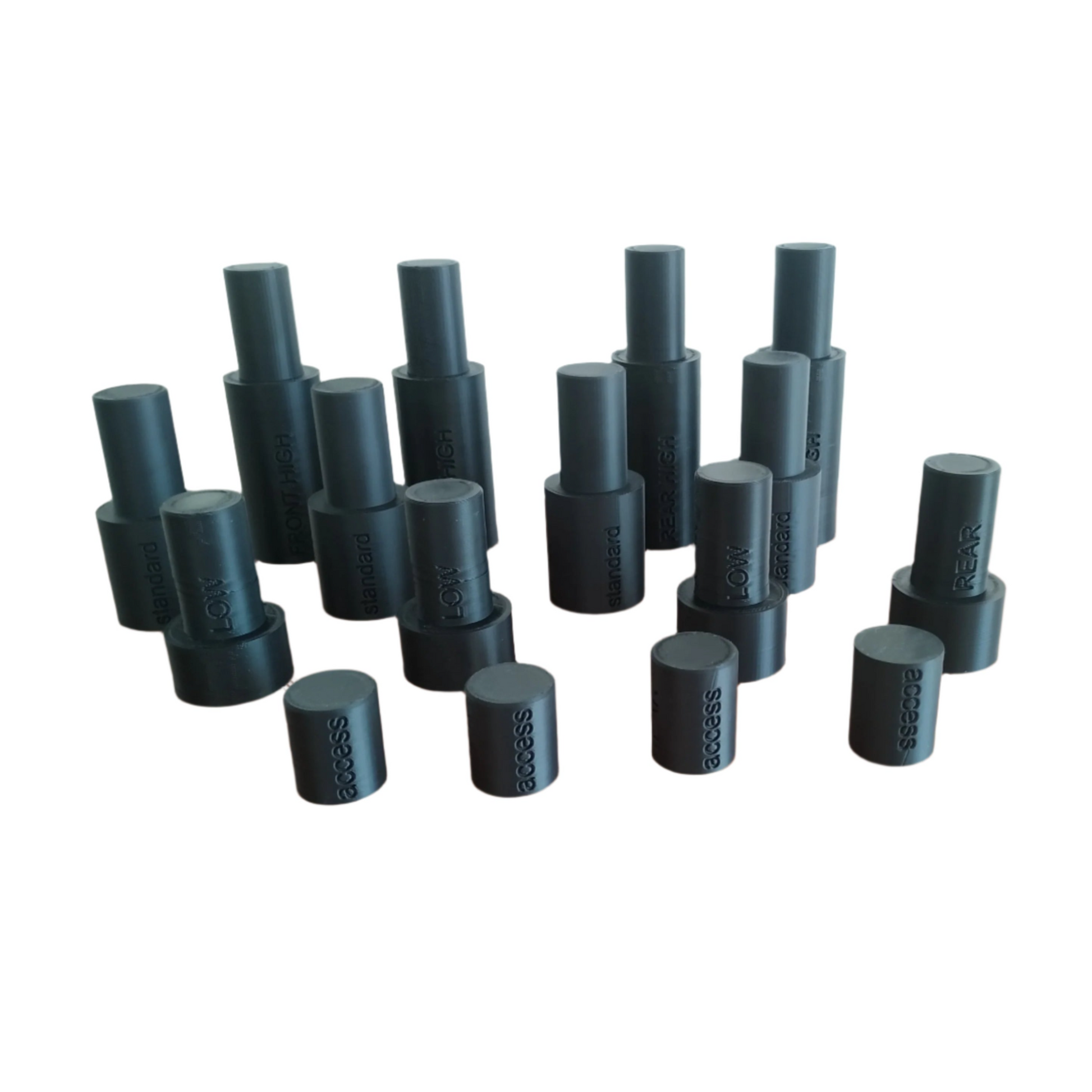

This is a set of height blocks for calibration of the level sensors on the Range Rover P38.

The diameter that goes into the bumpstop is 30mm and the big diameter to support to the flange of the bumpstops is 45mm.

Part Number: LRT-60-003

HIGH

2x 145mm rear

2x 140mm front

STANDARD

2x 105mm rear

2x 100mm front

LOW

2x 80mm rear

2x 75mm front

ACCESS

2x 40mm rear

2x 35mm front

Warnig: USE AT OWN RISK. Keep hands and everything that can get injured if the car falls off the blocks away. NEVER trust the blocks only! Use with caution :)
